Rainbow Filters Washable G2 Media
RFM05-G2W & RFM05-G2G

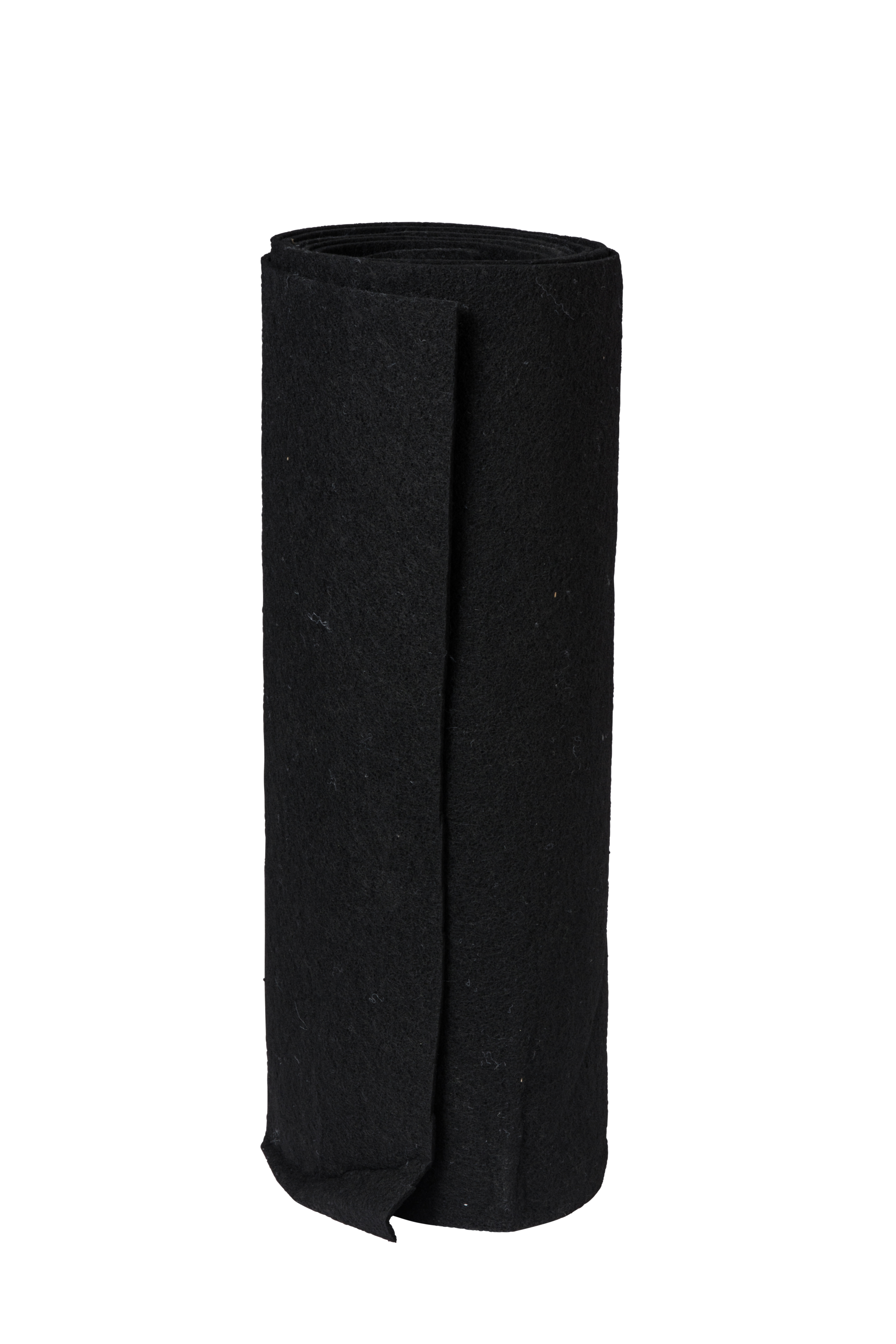

RAINBOW FILTERS FILTER MEDIA RFM-G2 is a washable polyester media with a good service life and offers a G2 rating, meeting Australian standards AS 1668 Part 2.
The polyester fibres are thermally bonded together into an interlocking pattern that traps dust and lint, while minimizing surface loading.
RFM-G2 is suitable in applications such as room air conditioning filters, domestic ducted heating and cooling, return air grill filters and as a roughing filter in a pre-filter situation.
This media has a nominal thickness of 5mm. It is available in a variety of roll widths.
Downloads
We offer a complete range of air filtration products and services, to meet all requirements for Hospitals, Pharmaceuticals, Commercial, Industrial and Food Processing Markets.
Better air is our business
Access the industry’s best experts. Contact us today to get the best advice.
Product list
| Code | Width (mm) | Length (m) | Nominal Thickness | Initial Resistance Pa | Efficiency | Dust holding No 4 test dust Per unit of effective face area |
| RFM05-G2G-1000 | 1000 | 40 | 5 | 27 | G2 | 225 g/m squared |
| RFM05-G2G-1220 | 1220 | 40 | 5 | 27 | G2 | 225 g/m squared |
| RFM05-G2G-2000 | 2000 | 40 | 5 | 27 | G2 | 225 g/m squared |
| RFM05-G2G-610 | 610 | 40 | 5 | 27 | G2 | 225 g/m squared |
| RFM05-G2W-1000 | 1000 | 40 | 5 | 27 | G2 | 225 g/m squared |
| RFM05-G2W-1220 | 1220 | 40 | 5 | 27 | G2 | 225 g/m squared |
| RFM05-G2W-2000 | 2000 | 40 | 5 | 27 | G2 | 225 g/m squared |
| RFM05-G2W-2000-20 | 2000 | 20 | 5 | 27 | G2 | 225 g/m squared |
| RFM05-G2W-2000-50 | 2000 | 50 | 5 | 27 | G2 | 225 g/m squared |
| RFM05-G2W-610 | 610 | 40 | 5 | 27 | G2 | 225 g/m squared |
