Rainbow Filters Disposable G4 Media
RFM15-G4

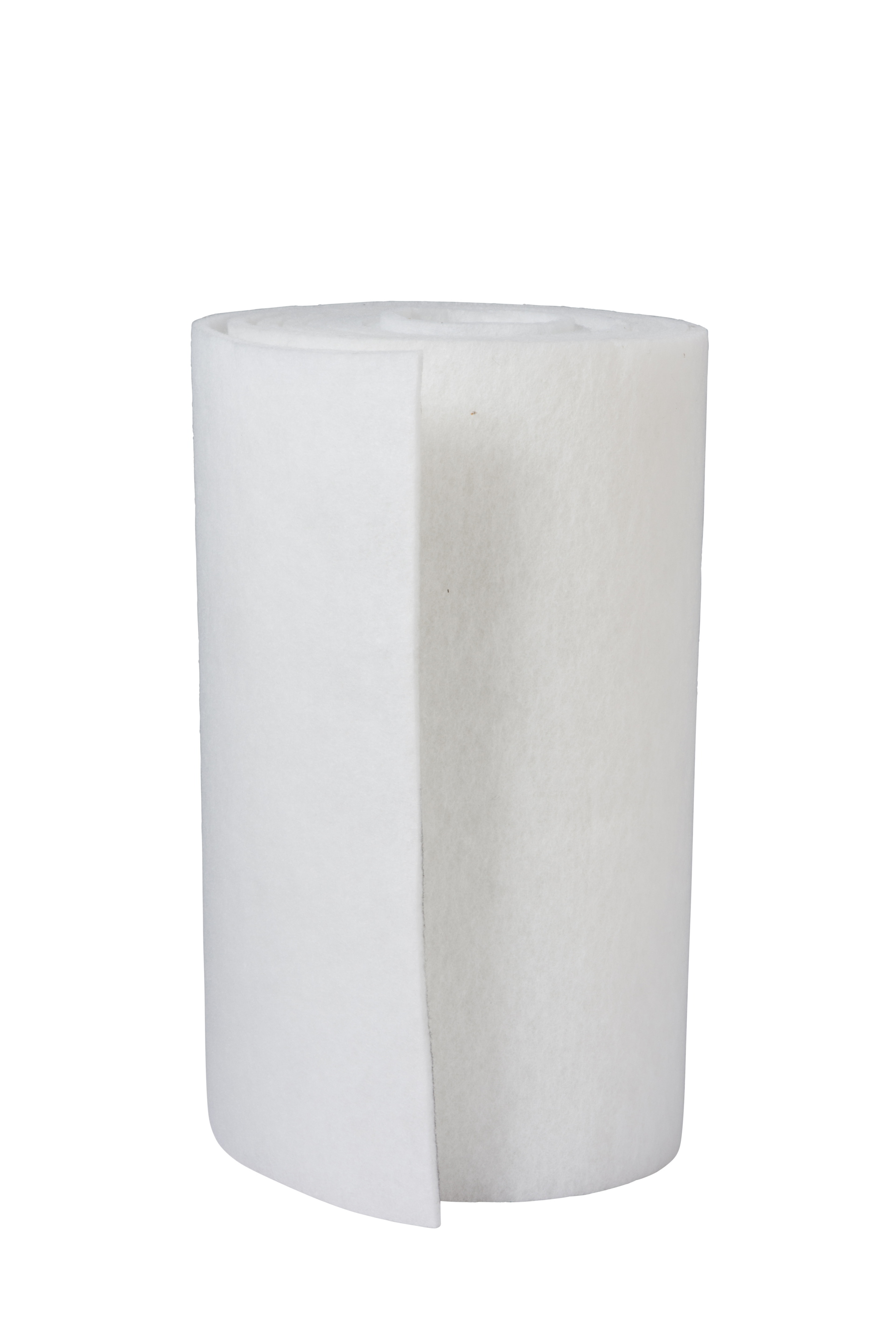

RAINBOW FILTERS FILTER MEDIA RFM – G4 is a disposable polyester media, meeting Australian standards AS 1668 Part 2
The polyester fibres are thermally bonded together into an interlocking pattern that traps dust and lint, while minimising surface loading.
This media has a nominal thickness of 15mm. It is available in a variety of roll widths.
Downloads
We offer a complete range of air filtration products and services, to meet all requirements for Hospitals, Pharmaceuticals, Commercial, Industrial and Food Processing Markets.
Better air is our business
Access the industry’s best experts. Contact us today to get the best advice.
Product list
| Code | Width (mm) | Length (m) | Nominal Thickness | Initial Resistance Pa | Efficiency | Dust holding No 4 test dust Per unit of effective face area |
| RFM15-G4-1000 | 1000 | 20 | 15 | 62 | G4 | 240 g/m squared |
| RFM15-G4-1220 | 1220 | 20 | 15 | 62 | G4 | 240 g/m squared |
| RFM15-G4-2000 | 2100 | 20 | 15 | 62 | G4 | 240 g/m squared |
| RFM15-G4-510 | 510 | 20 | 15 | 62 | G4 | 240 g/m squared |
| RFM15-G4-610 | 610 | 20 | 15 | 62 | G4 | 240 g/m squared |
Technical Data
Temperature Resistance : 100° C continuous
Fire Resistance : Low Flame Response

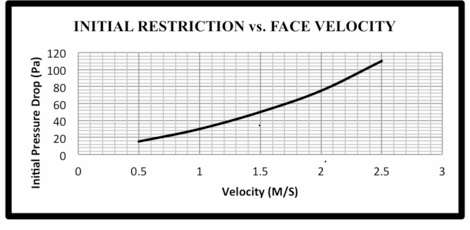

Initial Resistance - At rated flow of 1.8 m/s : 62 Pa
AS1132 No 4 test dust - Average Arrestance - 95%
Dust Holding No 4 test dust per unit of effective face area - 240 g/m²
