THF/TRP PANEL FILTERS - REMOVABLE PAD
DESCRIPTION
The THF/TRP filter is a fixed frame removable gate and pad type filter, providing a suitable housing for the “Rainbow” range of filter fabrics, in single or double layers of media. The Removable Gate allows easy access to the filter media and no additional holding frames are required.
TRP frame filters using G2, G3 or G4 Media provide adequate efficiency to satisfy most applications not requiring a very high efficiency. Increased efficiency can be obtained by fitting in pads of higher efficiencies.
Downloads
We offer a complete range of air filtration products and services, to meet all requirements for Hospitals, Pharmaceuticals, Commercial, Industrial and Food Processing Markets.
Better air is our business
Access the industry’s best experts. Contact us today to get the best advice.
Product list
| Code | Width (mm) | Height (mm) | Depth (mm) |
| THF/TRP-01 | 395 | 495 | 25 |
| THF/TRP-02 | 508 | 508 | 25 |
| THF/TRP-03 | 406 | 635 | 25 |
| THF/TRP-04 | 508 | 635 | 25 |
| THF/TRP-05 | 508 | 762 | 25 |
| THF/TRP-06 | 610 | 610 | 25 |
| THF/TRP-07 | Custom | Custom | Custom |
| THF/TRP-08 | 290 | 595 | 25 |
Suitable for
- AIR CONDITIONING
- HEATING & VENTILATING
- SPRAY BOOTHS
- INDUSTRIAL CLEAN AIR
CONSTRUCTION

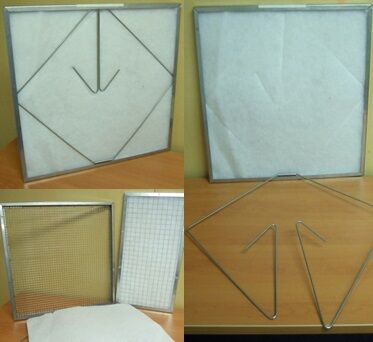

The main frame assembly is constructed from galvanised steel. Gal weld mesh is welded to an angular frame and the media is held by a hinged gate. For reverse flow applications, both the fixed & removal frames have weldmesh, held together by RAINBOW design clips.
FINISH
The THF/TRP filter is available in galvanised finish. They are also available in any grade of stainless steel required.
