TFS Fly Screen Filter
DESCRIPTION
- LOW INITIAL COST
- SIMPLE MAINTENANCE

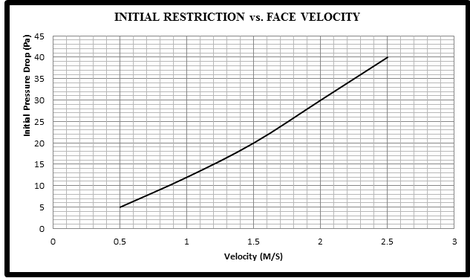

- LOW PRESSURE DROP
- G2 EFFICIENCY
- NON STANDARD SIZES MADE TO ORDER
"Rainbow" TFS are removable panel type filters suitable for small air conditioning units and common return air plenums with very low pressure drop. No oiling agents are required, and maintenance is simply carried out by removing the filter cell and replacing with a new one. For some cases where there is lint, the filter can be cleaned by light vacuuming.
Downloads
We offer a complete range of air filtration products and services, to meet all requirements for Hospitals, Pharmaceuticals, Commercial, Industrial and Food Processing Markets.
Better air is our business
Access the industry’s best experts. Contact us today to get the best advice.
Product list
| Code | Width (mm) | Height (mm) | Depth (mm) | Efficiency |
| BG-07 | Custom | Custom | Custom | G2 |
| BG-PERM-07 | Custom | Custom | Custom | G2 |
*Also available in Permatron media (a well know antistatic type media)
CONSTRUCTION

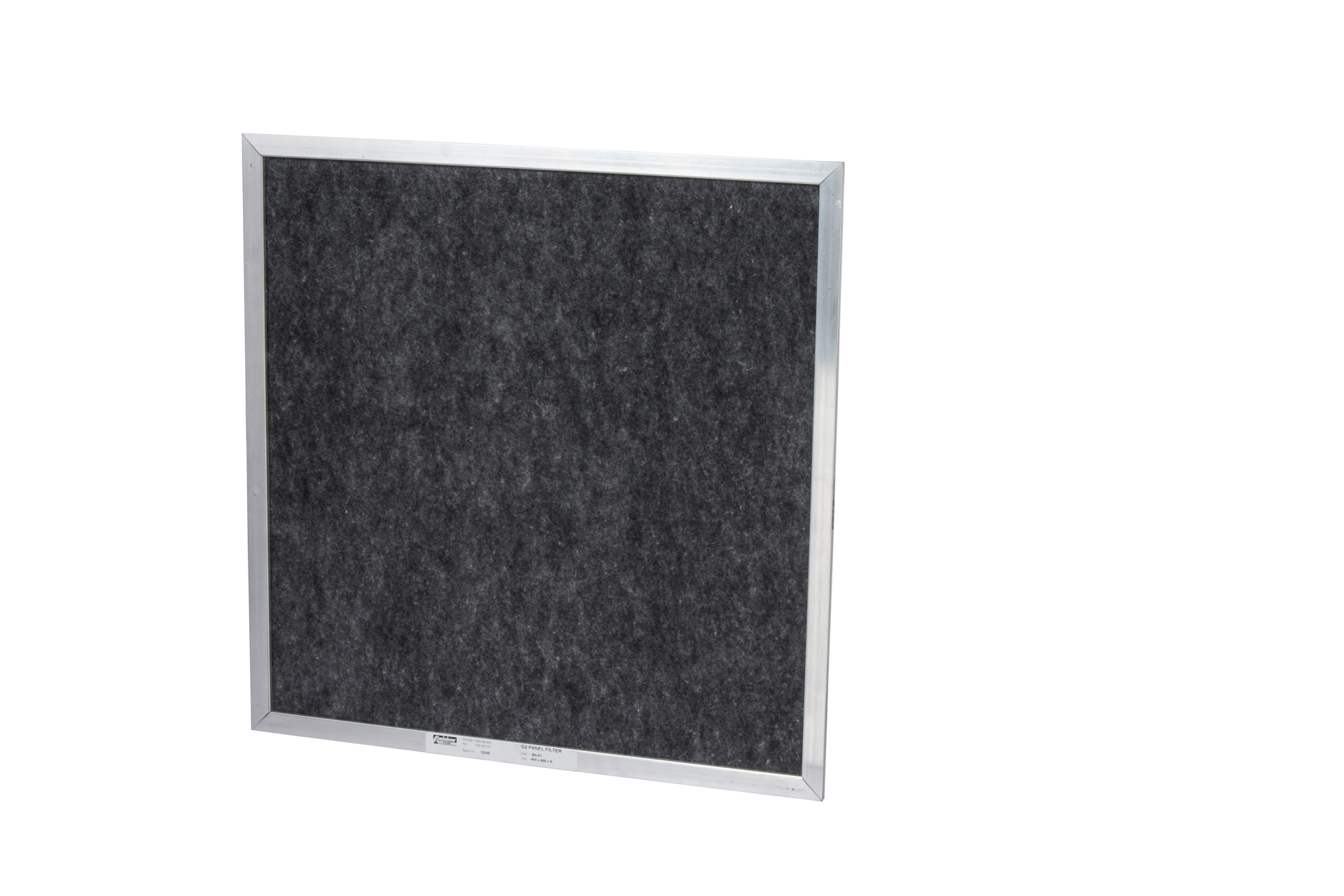

The TFS filter made of Aluminum fly screen frame with G2 efficiency media, held with rubber spline to ensure good sealing between frame and media. The filter can be made to different sizes based on requirement. For larger filters cross brace is placed on air leaving side to prevent rattle and any distortion.
