MultiWedge with Header Frame
Description

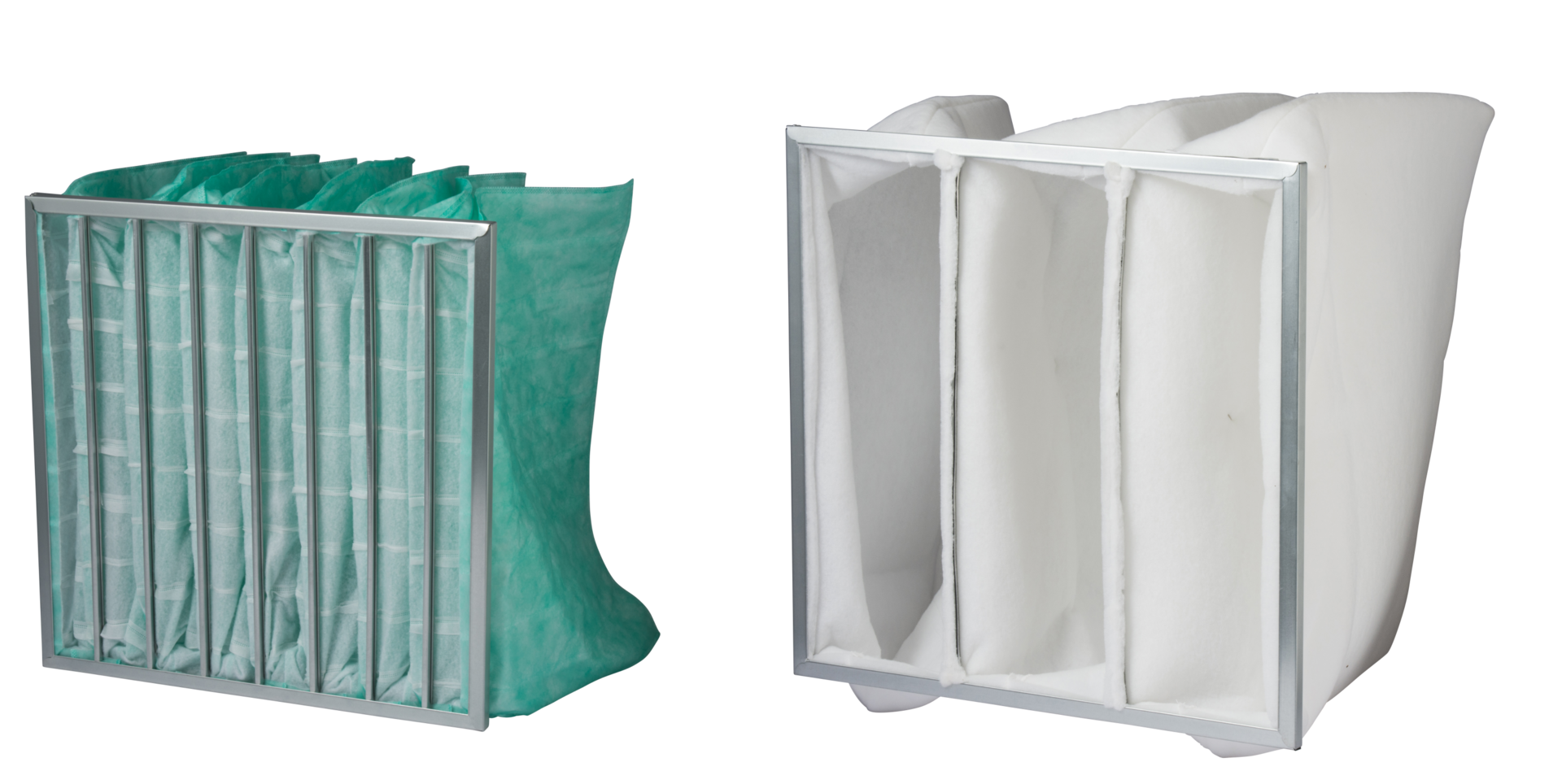

These synthetic ultrasonic pocket filters are constructed with synthetic media and assembled in galvanised steel frame. The pockets are flexible to maintain shape in changing conditions. Our Multiwedge filters offer high efficiency filtration while maintaining low resistance to air-flow.
Downloads
We offer a complete range of air filtration products and services, to meet all requirements for Hospitals, Pharmaceuticals, Commercial, Industrial and Food Processing Markets.
Better air is our business
Access the industry’s best experts. Contact us today to get the best advice.
Product list
| Code | Width (mm) | Height (mm) | Depth (mm) | Efficiency | Number of Pockets |
| MW3012-HF-F7-06 | 595 | 595 | 290 | F7 | 12 |
| MW303-HF-G4-08 | 595 | 287 | 305 | G4 | 3 |
| MW306-HF-G4-06 | 592 | 592 | 305 | G4 | 6 |
| MW308-HF-F8-01 | 495 | 395 | 300 | F8 | 8 |
| MW308-HF-F8-02 | 495 | 495 | 300 | F8 | 8 |
| MW364-HF-F8-08 | 290 | 595 | 360 | F8 | 4 |
| MW523-HF-F5-08 | 290 | 595 | 525 | F5 | 3 |
| MW523-HF-F6-08 | 290 | 595 | 525 | F6 | 3 |
| MW523-HF-F7-08 | 290 | 595 | 520 | F7 | 3 |
| MW523-HF-F8-08 | 290 | 595 | 520 | F8 | 3 |
| MW524-HF-F5-08 | 290 | 595 | 520 | F5 | 4 |
| MW524-HF-F6-08 | 290 | 595 | 520 | F6 | 4 |
| MW524-HF-F7-08 | 290 | 595 | 520 | F7 | 4 |
| MW524-HF-F8-08 | 290 | 595 | 520 | F8 | 4 |
| MW524-HFG-F7-08 | 305 | 610 | 520 | F7 | 4 |
| MW524-HFG-F8-08 | 305 | 610 | 520 | F8 | 4 |
| MW526-HF-F5-06 | 595 | 595 | 525 | F5 | 6 |
| MW526-HF-F6-06 | 595 | 595 | 525 | F6 | 6 |
| MW528-HF-F5-06 | 595 | 595 | 525 | F5 | 8 |
| MW528-HF-F6-06 | 595 | 595 | 525 | F6 | 8 |
| MW528-HF-F7-02 | 495 | 495 | 525 | F7 | 8 |
| MW528-HF-F7-06 | 595 | 595 | 525 | F7 | 8 |
| MW528-HF-F7-11 | 595 | 495 | 520 | F7 | 8 |
| MW528-HF-F8-06 | 595 | 595 | 525 | F8 | 8 |
| MW528-HF-F9-06 | 595 | 595 | 525 | F9 | 8 |
| MW528-HFG-F6-06 | 610 | 610 | 520 | F6 | 8 |
| MW528-HFG-F6-07 | Custom | Custom | Custom | F6 | 8 |
| MW528-HFG-F7-06 | 610 | 610 | 520 | F7 | 8 |
| MW528-HFG-F8-06 | 610 | 610 | 520 | F8 | 8 |
| MW5610-HF-F8-06 | 610 | 610 | 560 | F8 | 10 |
| MW564-HF-F6-08 | 305 | 610 | 560 | F6 | 4 |
| MW564-HF-F8-08 | 305 | 610 | 560 | F8 | 4 |
| MW565-HF-F8-08 | 305 | 610 | 560 | F8 | 5 |
| MW566-HF-F8-06 | 610 | 610 | 560 | F8 | 6 |
| MW566-HF-F8-08 | 305 | 610 | 560 | F8 | 6 |
| MW568-HF-F6-06 | 595 | 595 | 560 | F6 | 8 |
| MW568-HF-F8-06 | 610 | 610 | 560 | F8 | 8 |
| MW572HF-G4-08 | 190 | 595 | 570 | G4 | 2 |
| MW572HFG-G4-08 | 305 | 610 | 570 | G4 | 2 |
| MW573HF-G4-06 | 595 | 595 | 570 | G4 | 3 |
