MultiWedge Deep Bed Filter

With RFM G4 or RFM F5 Media

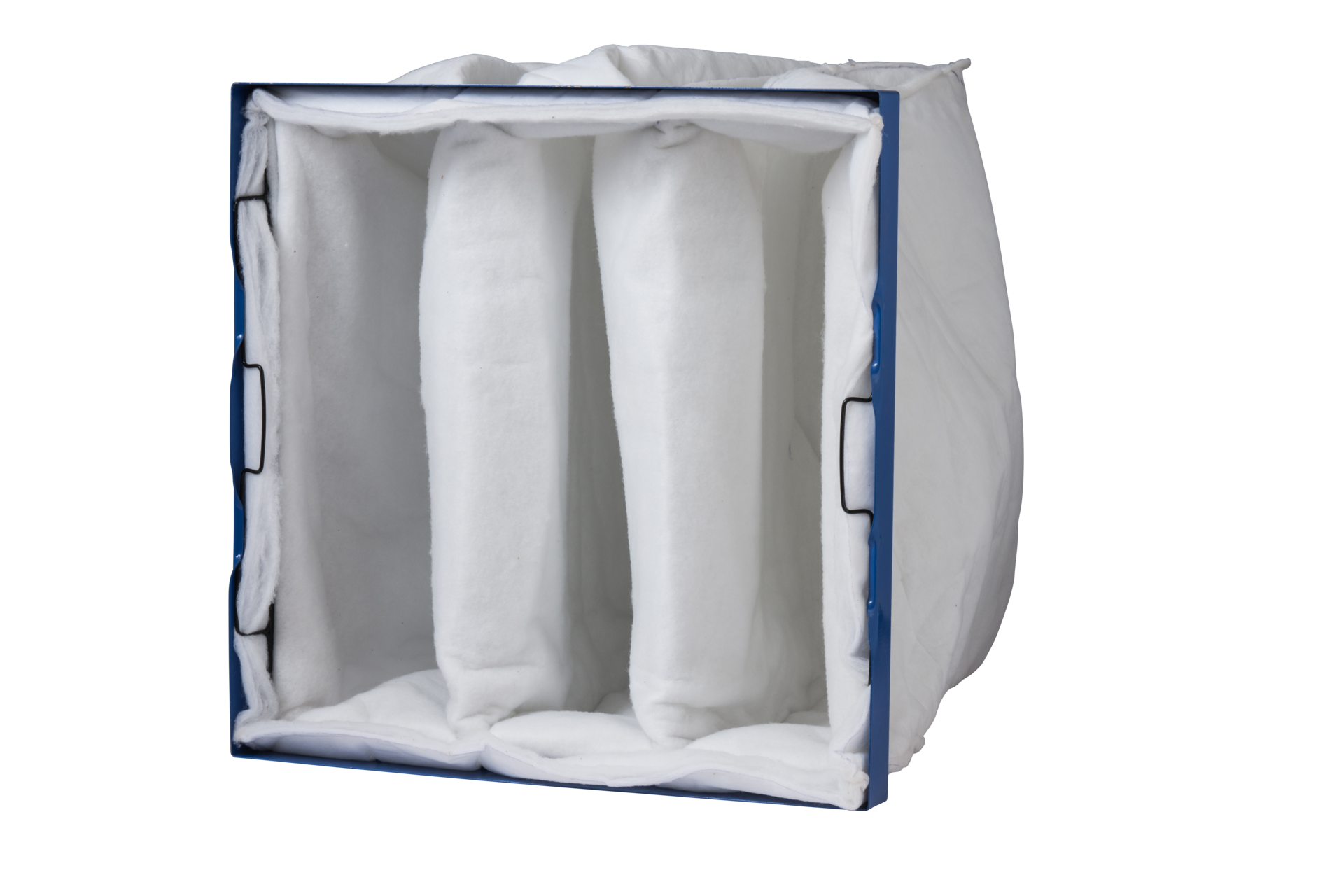

“RAINBOW” MULTI WEDGE Deep Bed Filters consist of three basic parts.

The Main Mounting or Fixed Frame consists of a heavy gauge steel frame with two media support rods fixed vertically to keep the media in position.

The Inner Media Retaining Frame creates a positive seal between the media and the main frame, thus ensuring there is no air bypass. This frame also has a shaped wire frame incorporated to form the media bag into the correct shape.

The Filter Bag of “G4 or F5 Media” is sewn into three wedges, or one wedge, depending on the size of the face area of the filter (see chart below). This gives a large media area in proportion to the face area and the depth of the filter. The media area gives the filter a very large dust holding capacity.

These filters are also available in F5, F6, F7, F8 and F9 media.

Downloads

MULTIWEDGE 2&3 POCKET DEEP BED BAG FILTERS

Product list

Code	Width (mm)	Height (mm)	Depth (mm)	Efficiency	Number of Pockets
MW303-G4-07	Custom	Custom	Custom	G4	3
MW352-G4-06	610	610	350	G4	2
MW353-G4-06	610	610	350	G4	3
MW381-G4-08	305	610	380	G4	1
MW382-G4-02	508	508	380	G4	2
MW382-G4-06	610	610	380	G4	2
MW382-G4-07	Custom	Custom	Custom	G4	2
MW382-G4-08	305	610	380	G4	2
MW383-G4-02	508	508	380	G4	3
MW383-G4-03	406	635	380	G4	3
MW383-G4-04	508	635	380	G4	3
MW383-G4-05	395	622	380	G4	3
MW383-G4-06	610	610	380	G4	3
MW383-G4-07	Custom	Custom	Custom	G4	3
MW572-G3-08	305	610	570	G3	2
MW572-G4-06	610	610	570	G4	2
MW572-G4-08	305	610	610	G4	2
MW573-2P90-06	610	610	570		3
MW573-F5-04	508	635	570	F5	3
MW573-F5-06	610	610	610	F5	3
MW573-G3-01	406	508	570	G3	3
MW573-G3-02	508	508	570	G3	3
MW573-G3-03	406	635	570	G3	3
MW573-G3-04	508	635	570	G3	3
MW573-G3-05	508	762	570	G3	3
MW573-G3-06	610	610	570	G3	3
MW573-G4-01	406	508	570	G4	3
MW573-G4-02	508	508	570	G4	3
MW573-G4-03	406	635	610	G4	3
MW573-G4-04	508	635	610	G4	3
MW573-G4-05	508	762	610	G4	3
MW573-G4-06	610	610	610	G4	3
MW573-G4-07	Custom	Custom	Custom	G4	3
MW573-G4-O-06	610	610	570	G4	3

MULTI WEDGE – TECHNICAL DATA

Velocity : (m/s) both G4 & F5 2.54
Initial Resistance : (Pa) G4=35, F5=48
INITIAL EFFICIENCY :
No. 1 Test Dust : G4=20.4%, F5=38.00 %
NO. 4 Test Dust : G4=91.2%, F5=92%
AVERAGE EFFICIENCY :
No. 1 Test Dust : G4=36.1%, F5=52.09 %
No. 4 Test Dust : G4=91.2%, F5=94.96%
DUST HOLDING CAPACITY :
No. 4 Test Dust : G4=787g, F5=730 g
DUST HOLDING CAPACITY : ( Per unit of face area)
No. 4 Test Dust : G4=2115g/sqm, F5=1962 g/sqm
