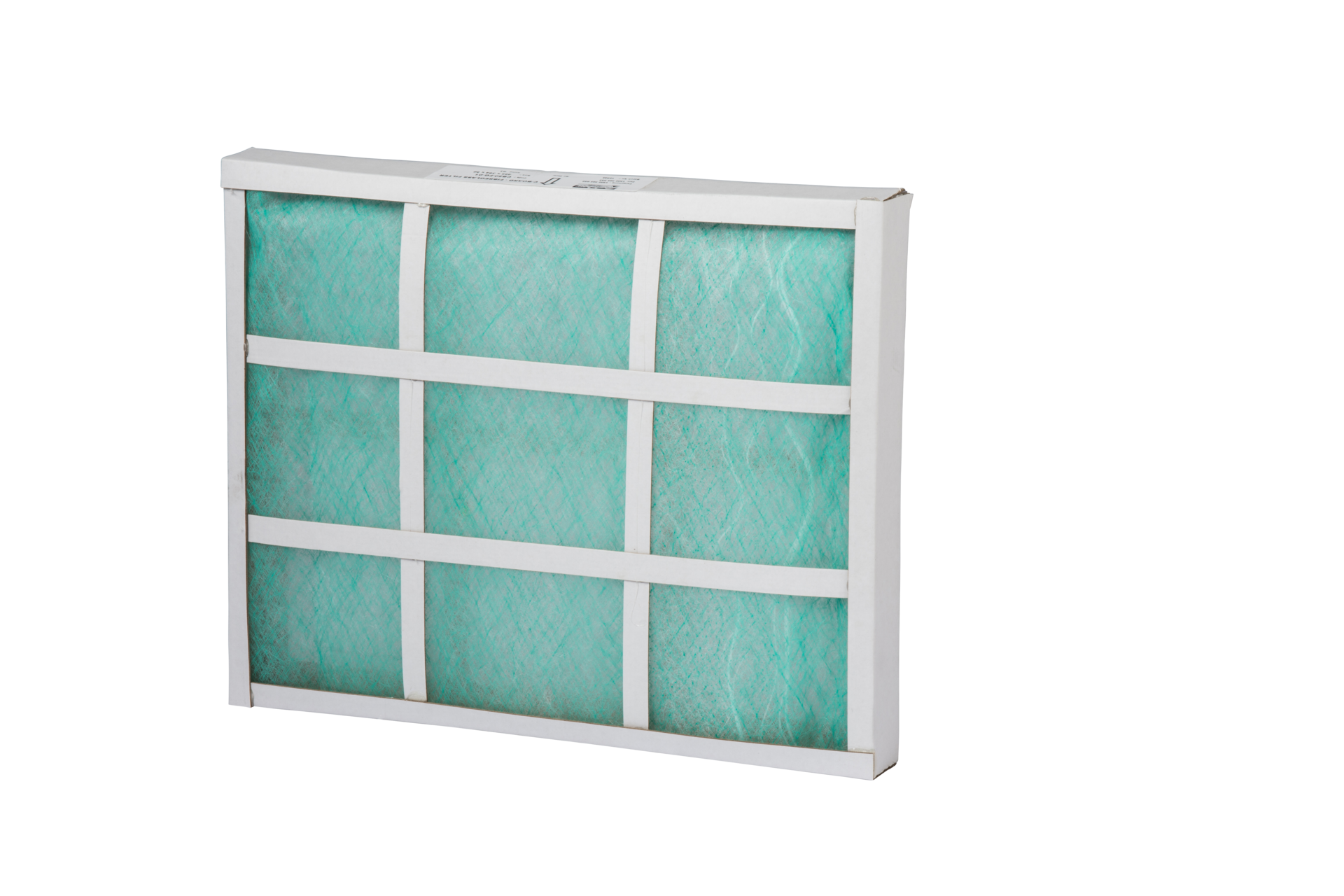

Cardboard Fibre Glass Filter
Description
The filter pads are constructed from resilient, non-felting glass fibres which are resistant to most chemicals. These pads are mounted in water resistant cardboard frame.
An efficient, inexpensive throwaway unit having a very high dust holding capacity and low resistance to air flow, the Fibre Glass filter reduces both initial costs and maintenance.
Downloads
We offer a complete range of air filtration products and services, to meet all requirements for Hospitals, Pharmaceuticals, Commercial, Industrial and Food Processing Markets.
Better air is our business
Access the industry’s best experts. Contact us today to get the best advice.
Product list
| Code | Width (mm) | Height (mm) | Depth (mm) | Capacity (L/S) | Clean Resistance Pa |
| CB25-FG-01 | 394 | 495 | 25 | 307 | 25 |
| CB25-FG-02 | 495 | 495 | 25 | 378 | 25 |
| CB25-FG-03 | 394 | 622 | 25 | 378 | 25 |
| CB25-FG-04 | 495 | 622 | 25 | 472 | 25 |
| CB25-FG-05 | 495 | 749 | 25 | 708 | 25 |
| CB25-FG-06 | 597 | 597 | 25 | 550 | 25 |
| CB50-FG-01 | 394 | 495 | 50 | 307 | 37 |
| CB50-FG-02 | 495 | 495 | 50 | 378 | 37 |
| CB50-FG-03 | 394 | 622 | 50 | 378 | 37 |
| CB50-FG-04 | 495 | 622 | 50 | 472 | 37 |
| CB50-FG-05 | 495 | 749 | 50 | 708 | 37 |
| CB50-FG-06 | 597 | 597 | 50 | 550 | 37 |
