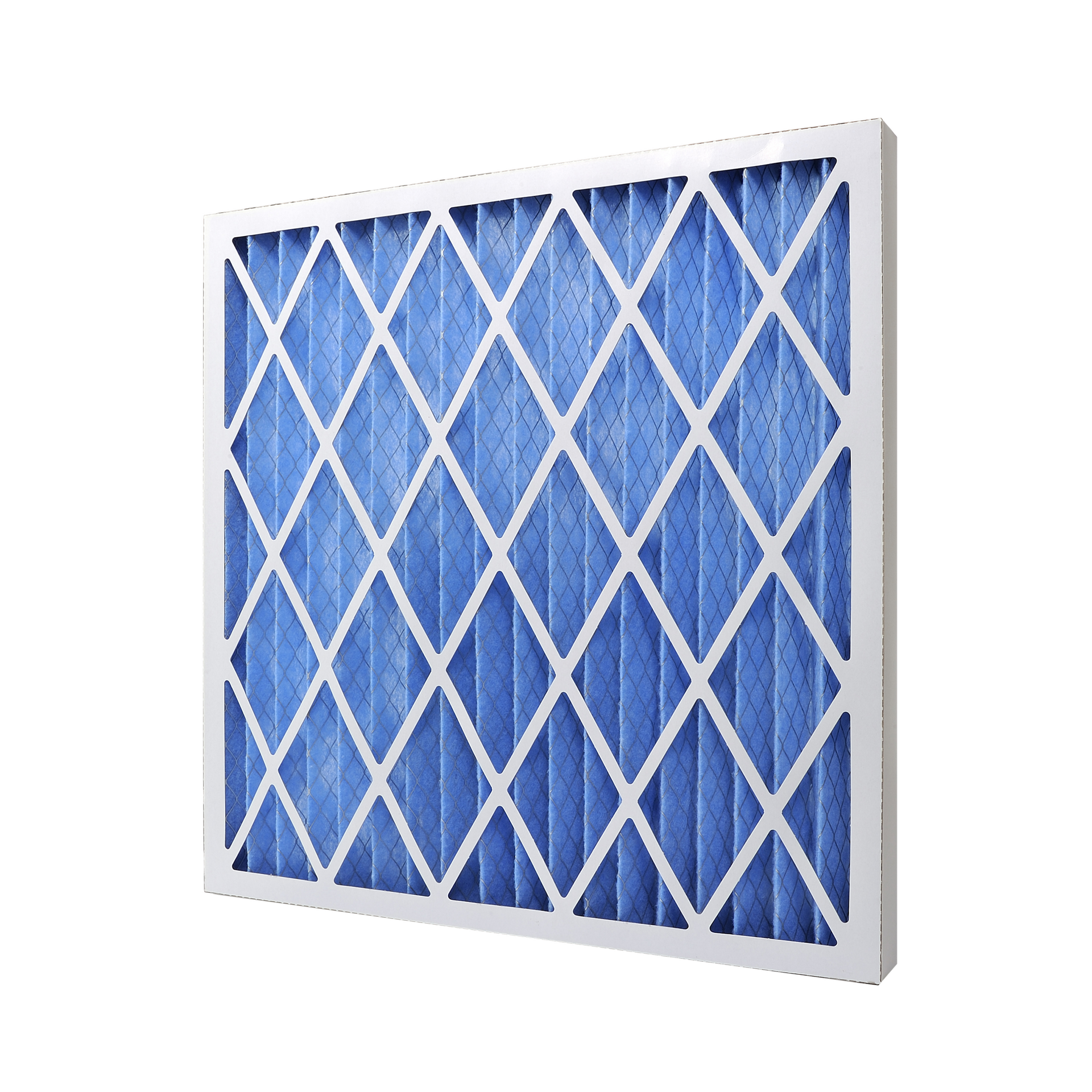

Cardboard Disposable V/Form 4 inch Filters
Description
These pleated filters use synthetic media and bonded to a weld mesh on the air-exiting side and then enclosed into die-cut cardboard. These filters are available in three thickness - 22mm (1”), 45mm (2”) , 95mm (4”) with 30-35% efficiency rate.
Downloads
We offer a complete range of air filtration products and services, to meet all requirements for Hospitals, Pharmaceuticals, Commercial, Industrial and Food Processing Markets.
Better air is our business
Access the industry’s best experts. Contact us today to get the best advice.
Product list
| Code | Nominal (Inches) | Width (mm) | Height (mm) | Depth (mm) | Capacity (L/S) | Nominal Thickness | Clean Resistance Pa | Efficiency |
| FAC4-01 | 16x20x4 | 394 | 495 | 95/14P | 495 | 95 mm | 32 | G4 |
| FAC4-02 | 20x20x4 | 495 | 495 | 95/18P | 620 | 95 mm | 32 | G4 |
| FAC4-03 | 25x16x4 | 394 | 622 | 95/14P | 620 | 95 mm | 32 | G4 |
| FAC4-04 | 25x20x4 | 494 | 622 | 95/18P | 780 | 95 mm | 32 | G4 |
| FAC4-05 | 20x30x4 | 749 | 495 | 95 | 930 | 95 mm | 32 | G4 |
| FAC4-06 | 24x24x4 | 595 | 595 | 95/21P | 900 | 95 mm | 32 | G4 |
| FAC4-07 | Custom | Custom | Custom | |||||
| FAC4-08 | 12x24x4 | 595 | 292 | 95/11P | 450 | 95 mm | 32 | G4 |
| FAC4-11 | 20x24x4 | 595 | 495 | 95/18P | 740 | 95 mm | 32 | G4 |
| FAC4-12 | 12x12x4 | 290 | 290 | 95/11P | 210 | 95 mm | 32 | G4 |
| FAC4-13 | 10x21x4 | 519 | 239 | 95 | 95 mm | 32 | G4 | |
| FAC4-15 | 16x16x4 | 394 | 394 | 95 | 95 mm | 32 | G4 | |
| FAC4-16 | 16x24x4 | 595 | 394 | 95/14P | 595 | 95 mm | 32 | G4 |
| FAC4-20 | 18x20x4 | 495 | 445 | 95 | 95 mm | 32 | G4 | |
| FAC4-21 | 10x16x4 | 394 | 239 | 95 | 95 mm | 32 | G4 | |
| FAC4-24 | 18x24x4 | 595 | 445 | 95/16P | 670 | 95 mm | 32 | G4 |
Specifications
Series : Pleated Series
Frame : Rigid high wet-strength beverage board
Media : G4 Synthetic Media
Fire retardant grade : UL900 Class 2
Temperature ≤ 70° C
Humidity ≤ 95% RH
Efficiency : G4 -30 to 35%
Average Arrestance : 91%
Dust Holding Capacity : 231g/m² at 125Pa
Test Velocity : 2.54 m/s
Advantages
These Filters are at low cost, easy to install in wide range of application and are high moisture resistant.
Applications
These Filters can be used as pre-filters for most demanding filtration system and for extending the life of expensive high-efficiency filters. They can be used in residential, commercial and industrial situations.
